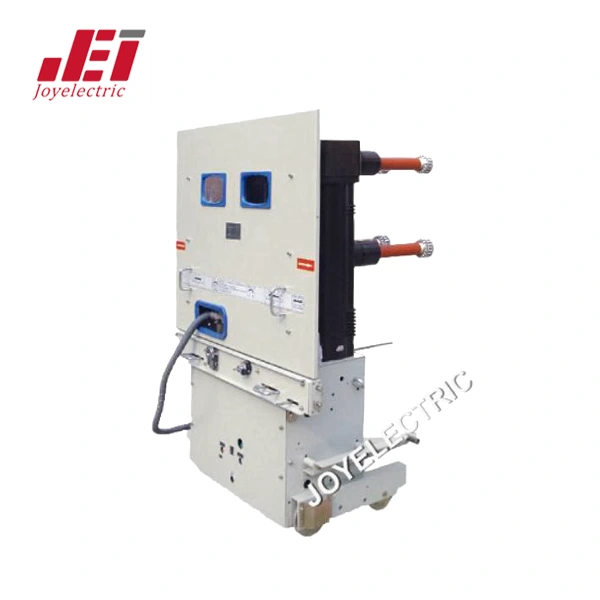

ZN85-40.5 Vacuum circuit breaker
2.It’s used for switchgear KYN61-40.5(Z)
3.It’s accordance with GB1984 AC HV vacuum circuit breaker standard.
4.It effectively reduces the dimensions of VCB, the overall arrangement is reasonable and simple,with aesthetic appearance.
5.It has high reliable with characteristics of long life and easy maintenance and free-maintenance for operating mechanism.
6.Meet the “Five Preventions” function.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Shaanxi Joyelectric International Co., Ltd. proudly presents the ZN85-40.5 Vacuum Circuit Breaker, a cutting-edge solution designed to meet the demanding needs of modern power transmission and distribution systems. With over two decades of expertise in the industry, we bring you a comprehensive product that exemplifies quality, reliability, and innovation.
Product Features
-
High level Vacuum Interference Innovation: The ZN85-40.5 uses cutting edge vacuum interrupters to guarantee quick and solid circuit breaking, improving framework execution and wellbeing.
-
Powerful Development: Designed with top notch materials, the electrical switch flaunts excellent sturdiness, making it appropriate for different natural circumstances and requesting applications.
-
Conservative Plan: Its minimal and space-saving plan considers simple establishment and incorporation into existing frameworks, upgrading space use.
-
Features of Remote Operation: Furnished with far off activity includes, the ZN85-40.5 offers upgraded adaptability and control, empowering effective administration of force dispersion organizations.
-
Thorough Assurance: The electrical switch integrates far reaching insurance components to protect against over-burdens, shortcircuits, and other electrical issues, guaranteeing continuous power supply.
Product Parameters
The ZN85-40.5 Vacuum Circuit Breaker adheres to stringent quality standards and is designed to deliver exceptional performance. Below are the basic product parameters:
Parameter | Value |
---|---|
Rated Voltage | 40.5 kV |
Rated Current | 1250-3150 A |
Rated Frequency | 50/60 Hz |
Rated Short-circuit Breaking Current | 31.5 kA |
Rated Short-time Withstand Current | 31.5 kA, 4s |
Rated Peak Withstand Current | 80 kA |
Application
For dependable circuit protection, the ZN85-40.5 Vacuum Circuit Breaker (VCB) is widely used in medium-voltage power systems. With its vigorous plan and high level elements, the ZN85-40.5 VCB guarantees effective interference of electrical flows, protecting hardware and staff from expected perils.
Outfitted with vacuum interrupter innovation, this electrical switch offers better execution analyzed than customary air or oil circuit breakers. The arc extinguishing capabilities provided by vacuum interrupters are quick and dependable, increasing the circuit breaker's overall reliability and lifespan.
The ZN85-40.5 VCB is generally utilized in substations, modern plants, and power dissemination networks where medium-voltage exchanging is required. Its conservative plan and measured development make establishment and support helpful, lessening margin time and functional expenses.
Key highlights of the ZN85-40.5 VCB include:
- Strong breaking power: Equipped for hindering high shortcoming flows securely.
- Controller and checking: Reconciliation with administrative control frameworks for far off activity and condition checking.
- Strong protection: Guarantees stable execution even in brutal ecological circumstances.
- Mechanical and electrical interlocking: Forestalls inappropriate activity and upgrades wellbeing.
- Consistence with worldwide principles: performs as well as exceeds relevant industry standards for safety.
All in all, the ZN85-40.5 Vacuum Electrical switch is a solid and effective answer for medium-voltage circuit security applications, offering unrivaled execution, wellbeing, and simplicity of upkeep.
FAQ
-
What is the operating mechanism of the ZN85-40.5 Vacuum Circuit Breaker?
- The ZN85-40.5 utilizes a spring operating mechanism for reliable and efficient circuit breaking.
-
Can the circuit breaker be operated remotely?
- Yes, the ZN85-40.5 is equipped with remote operation capabilities for enhanced control and flexibility.
-
What certifications does the ZN85-40.5 Vacuum Circuit Breaker hold?
- The ZN85-40.5 is certified to meet ISO9001 standards, ensuring the highest levels of quality and performance.
Certifications: ISO9001
The china vacuum circuit breaker factory is certified to meet the stringent quality management standards set by ISO9001. This certification underscores our commitment to delivering products of the highest quality, reliability, and performance to our customers worldwide.
For over two decades, Shaanxi Joyelectric International Co., Ltd. has been a trusted name in the power transmission and distribution industry. With a comprehensive product range, global sales and agents, and a commitment to customer satisfaction, we are your one-stop solution provider for all your power distribution needs. Contact us today at market@joyelectric-china.com to learn more about the 630 amp vacuum circuit breaker and how it can benefit your operations.
