We're professional Switchgear manufacturers and suppliers in China, specialized in providing high quality Switchgear with competitive price. To buy or OEM Switchgear from our factory. For free sample, contact us now.
Switchgear
0(GZS1) Switchgear.webp)

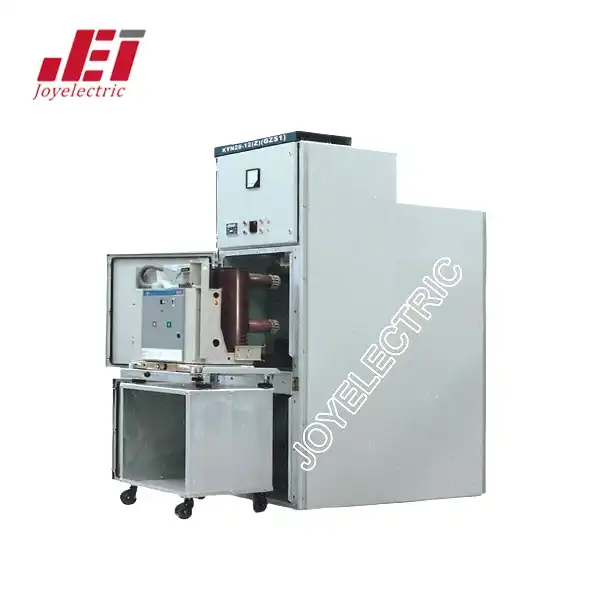

KYN28-12(Z)(GZS1) Switchgear
1.With voltage of 3.6~12kV
2.The enclosure is made of aluminum-zine coated sheet.
3.It can be equipped with ZN63A and VD4 type vacuum circuit breakers.
4.Wrong operation can be avoided due to its simple and effective “FIVE PROVENTION” Switchgear.webp)
XGNS9-12(24) Switchgear
1.Modular design, fits the requirement of end user or network node.
2.It is suitable for various distribution switching stations, box-type substation and cable branch boxes.
3.It has characteristics of compact structure, safe, reliable, long life and free maintenance.
4.The switchgear includes an air tank welded by 3.0mm stainless steel, all live parts and switches are placed in it.
5.Routine test shall be carried out for all elements/modules before the product leaves the factory.
XGNS8-12 Switchgear
1.Environment protection;
2.Fully nitrogen insulation and vacuum arcing, not using SF6 gas insulation as arcing and insulation;
3.Only using reusable or recyclable materials.
4.XGNS8-12 series switchgears are environment-friendly gas-insulated metal-enclosed switchgears which are extensible and with a rated voltage of 12kV.
5.It featured with compact structure, safe and reliable operation, long service life and little maintenance.
XGNS2-40.5 Switchgear
1.It is suitable for power plant, transformer substation and box type power station.
2.Three-phase indoor AC single bus or double bus in 50/60Hz rated frequency, 40.5kV rated voltage.
3.Meet requirements of end users or network nodes and satisfy demands of various.
4.Altitude: not more than 4000m.
5.Ambient temperature: Max. +40℃, Min. -25℃(Daily average temperature not more than 35℃)
XGNS1-40.5 Switchgear
1.Complete functions provided by basic functional units such as load switch, load switch+fuse composite apparatus and circuit breaker.
2.Small volume, light weight, size down to 500*1010*1900(mm) and particularly suitable for wind turbine tower application.
3.Simple operation, safe use, easy maintenance and zero maintenance for 30 years.
4.Enclosed design, zero exposed live component and long-term availability under severe conditions.
5.Flexible modular integration with plug-in expansion busbar.

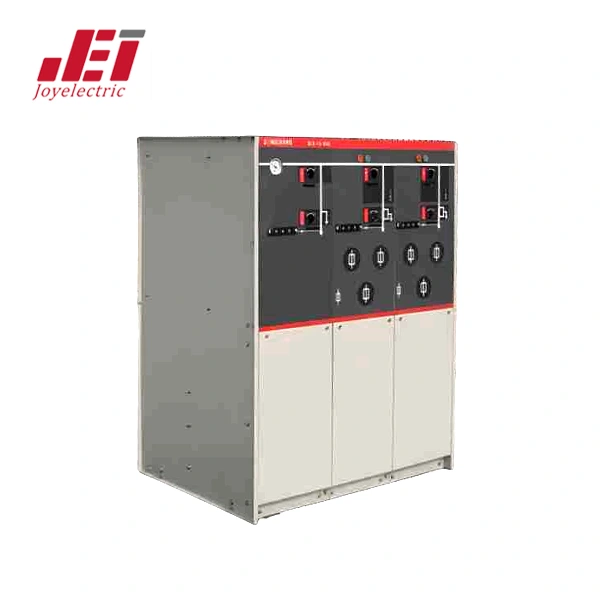

12kV Ring Main Unit SF6 Gas RMU
Applicable standards
1.IEC 60265: Switching and operations
2.IEC 60420: Switch-fuse co-operation
3.IEC 62270-200: Alternating-current metal-enclosed switchgear and controlgear for rated voltages above 1kV and up to and including 52kV
4.IEC 62271-102: High-voltage alternating current disconnectors and earthing switches
5.IEC 62271-100: High-voltage alternating current Circuit breakers
24kV Ring Main Unit SF6 Gas RMU
Applicable standards
1.GB3804: Alternating-current load switchgear for rated voltages above 3.6kV and up to and including 40.5kV
2.GB1984: High-voltage alternating current Circuit breakers
3.GB1985: High-voltage alternating current disconnectors and earthing switches
4.GB16927: Switch-fuse co-operation
5.GB3906:Alternating-current metal-enclosed switchgear and controlgear for rated voltages above 3.6kV and up to and including 40.5kV.webp)

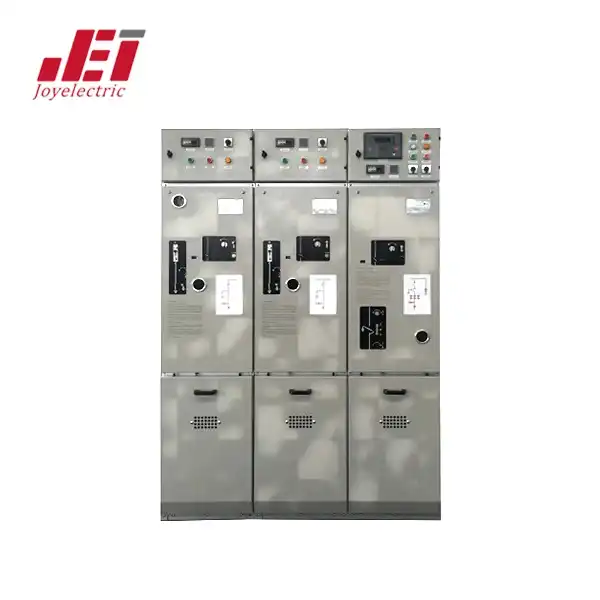

Indoor Gas Insulation Metal-clad Switchgear XGNS2-40.5
1.Switchgear XGNS2-40.5 includes a series of expandable SF6-insulated metal-cald switchgear at voltage rating of 40.5kV.
2.All live parts of primary high-voltage circuit are wholly enclosed in a welded cabinet of 3mm-thickness stainless steel sheets, which gives a small volume.
3.The switchgear is not subject to the influence of surrounding conditions so that it guarantees the safe and reliable running and zero maintenance.
4.It can be integrated as module by using plug-in expansion busbar. Meet requirements of end users or network nodes and satisfy various demands.

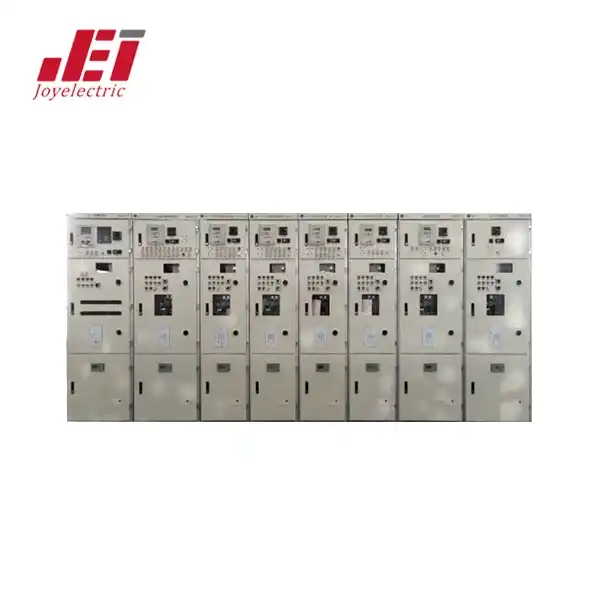

Indoor Gas Insulation Metal-clad Switchgear 36kV
1.Switchgear XGNS1-40.5 includes a series of expandable SF6-insulated metal-clad switchgears at the voltage rating of 40.5kV.
2.All live parts of primary high-voltage circuit are wholly enclosed in a welded cabinet of 3mm-thinckness stainless steel sheets
3.Safe and reliable running and zero maintenance.
4.Meet requirements of your need.
5.compact structure, safety, reliability, long life and zero maintenance.

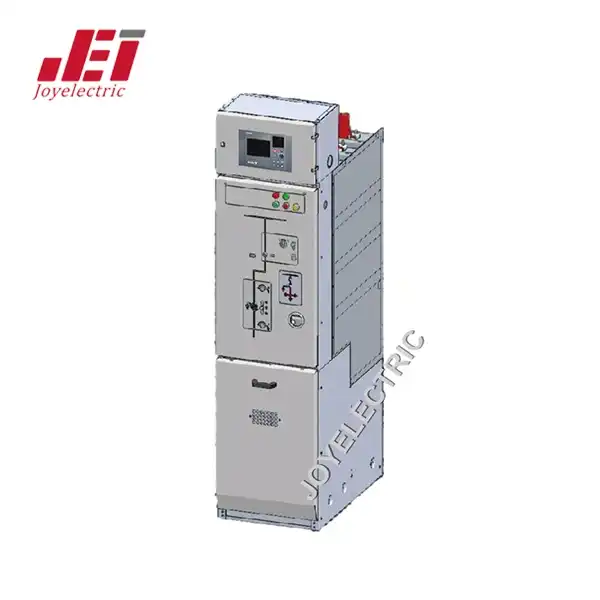

12kV Enviroment-friendly Gas-insulated Metal-clad Switchgear
1.Environment protection;
2.Fully nitrogen insulation and vacuum arcing, not using SF6 gas insulation as arcing and insulation;
3.Only using reusable or recyclable materials.
4.The cabinet is designed with a compact structure and a small floor are; the minimum part is only 400mm;
5.Modular design, adding extensible solid bus to extend one or more functional units, solid busbar fully insulated and shielded, available for on-site extension installation;.webp)

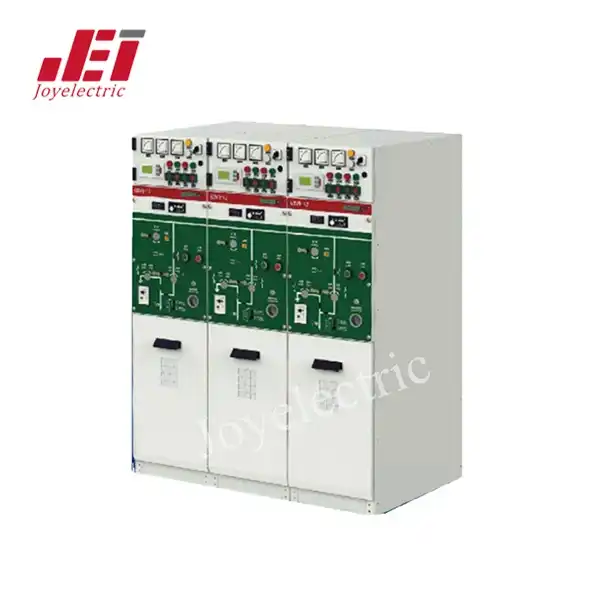

Solid Insulated Switchgear
1.It is small, touchable, all-insulated, flood-control, and maintenance-free.
2.It is suitable for urban commercial center, industrial concentration district, airport, electrified railway and expressway
3.Low cost,short delivery period..webp)

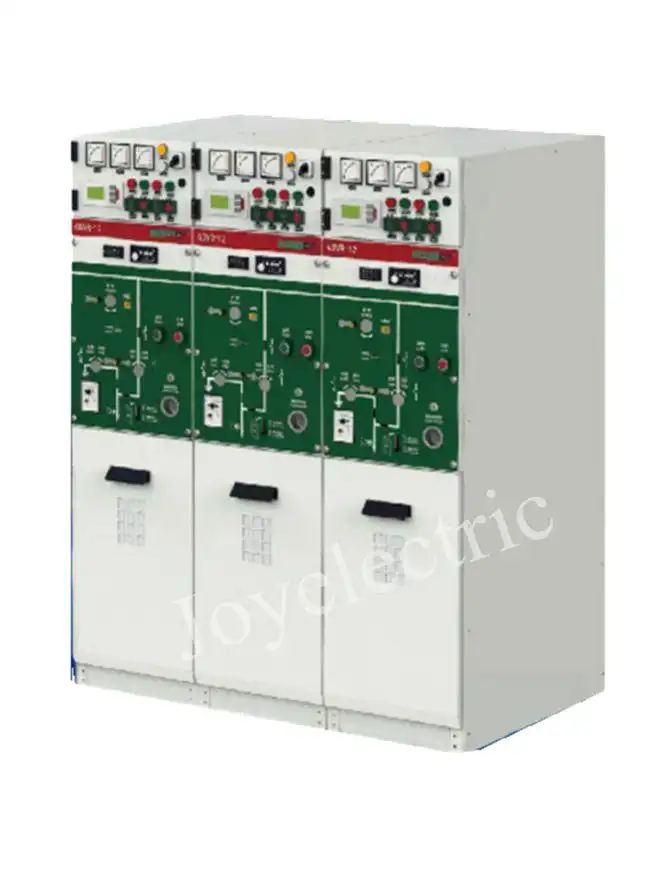

XGN-12kV Solid Insulated Switchgear
Operating Condition
1.Altitude: ≤4000m(Please specify the situation when the altitude is higher than 1000m).
2.Ambient temperature: Max. temperature: +50℃; Min. temperature: -40℃; Max. temperature (24-hour average):35℃
3.Ambient humidity: 24-hour Max. Average relative humidity: 95%; monthly Max. Average relative humidity: 90%
4.Installation condition: no explosive and corrosive gas around; no violent vibration and impact at installation site; pollution level less than GB/T5582 Grade III.
5.Crack resistance: 9 degrees.
